PCB design of digital set-top box

Digital Set-Top Box PCB Design for High-Performance Embedded Systems

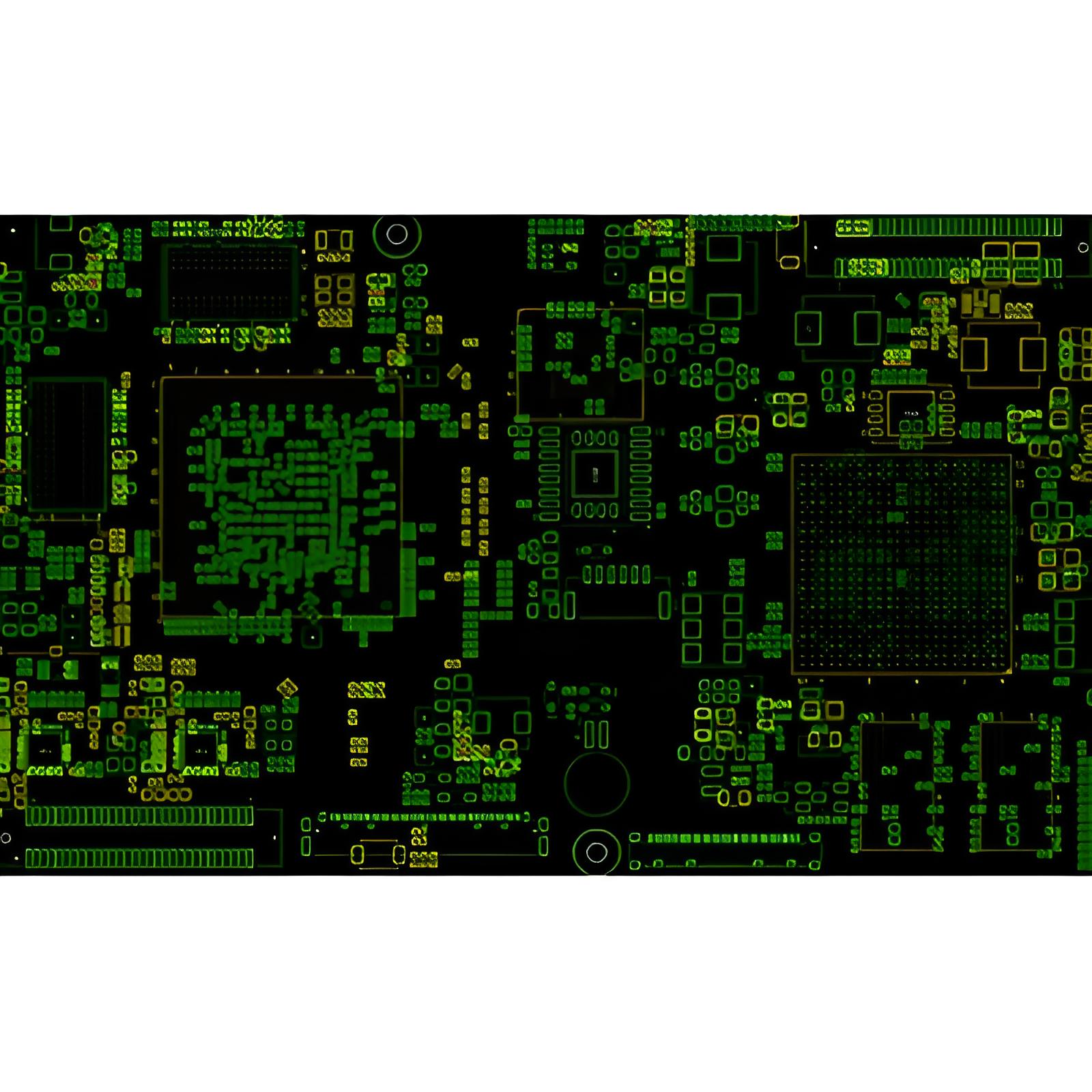

This advanced two-layer printed circuit board (PCB) is specifically engineered for digital television set-top boxes, delivering reliable signal integrity, efficient power distribution, and robust electromagnetic compatibility. Designed with precision for embedded computing applications, this PCB supports real-time operating systems and high-speed data processing, making it ideal for modern smart TV solutions that require seamless integration of multimedia signals and user-friendly interfaces.

Key features include a minimalist reverse-side layout featuring only essential filter capacitors, which reduces manufacturing complexity while maintaining optimal electrical performance. Critical Components such as DDR3 memory modules and HDMI connectors are placed on the same layer without via drilling—ensuring minimal signal loss and enhanced routing efficiency. The ground plane design strictly adheres to best practices in EMI/EMC compliance, with careful attention to ground loop mitigation to prevent noise interference in sensitive analog and digital circuits.

The board uses FR4 material with 1 oz copper thickness, offering excellent thermal stability and mechanical durability for long-term operation in consumer electronics environments. With dimensions of 171 x 128 x 1.6 mm, this through-hole PCB provides a compact yet scalable solution suitable for mass production in home entertainment devices. Its layered structure balances cost-effectiveness with performance, enabling manufacturers to meet stringent industry standards while optimizing space utilization within set-top box enclosures.

Engineered for use in digital video receivers, this PCB serves as the backbone for modern set-top boxes that offer interactive program guides, on-demand content streaming, and multi-format video decoding capabilities. It supports integration with powerful CPUs and peripheral controllers, allowing for smooth execution of GUI-based navigation and real-time audio-video synchronization. Whether deployed in residential broadband systems or commercial IPTV installations, this board ensures consistent signal quality across diverse network conditions.

Users report improved system reliability and reduced development time due to the board’s well-organized component placement and clear grounding strategy. Many engineers appreciate the clean separation between power and signal layers, which minimizes crosstalk and simplifies testing during final assembly. Additionally, the straightforward fabrication process makes it easier to scale production without compromising quality or consistency.

Common questions often revolve around thermal management in compact enclosures—this design addresses that by using appropriate trace widths and thermal vias where needed. Another frequent inquiry concerns compatibility with various microcontrollers; the PCB's modular footprint allows flexible integration with different SoCs, including ARM-based processors commonly found in current-generation set-top boxes. For those concerned about regulatory compliance, the board meets international EMC requirements when assembled according to recommended guidelines.
