High-Frequency

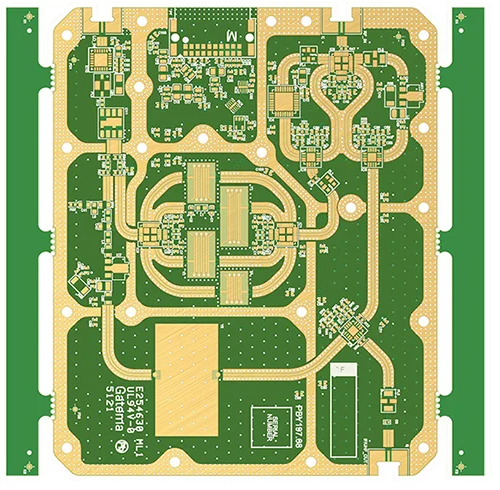

PCB with PTFE Laminate for Advanced RF and Microwave Applications This high-frequency printed circuit board (PCB) is engineered for demanding applications in radar systems, satellite communications, 5G infrastructure, and aerospace electronics. Utilizing polytetrafluoroethylene (PTFE)-based laminate material, it delivers exceptional dielectric stability, low signal loss, and superior performance at frequencies exceeding 1 GHz—making it ideal for microwave and millimeter-wave designs. Designed to meet IPC6012 Class II or Class III standards, this PCB ensures reliable electrical integrity under extreme environmental conditions. Key Features: - Dielectric constant: 2.0–3.5 (ultra-low Dk for minimal phase distortion) - Copper thickness: Base copper 0.5 oz, finished layer 1 oz (optimized for current handling) - Layer count: 2 to 34 layers (supports complex multi-layer RF layouts) - Board thickness: 0.1 mm to 12 mm (flexible form factor for diverse mechanical requirements) - Surface finish: Immersion Gold or ISIG (enhanced solderability and long-term reliability) - Material composition: High-purity PTFE composite with controlled dissipation factor (Df < 0.001 at 10 GHz) The core advantage of this high-frequency PCB lies in its use of a specialized PTFE-based substrate, known for thermal resilience up to 260°C, chemical inertness against acids and solvents, and an ultra-low coefficient of friction. These properties ensure consistent signal transmission even in harsh environments such as military-grade radars, automotive ADAS systems, and space-bound payloads. Unlike conventional FR4 materials, which suffer from increased losses at higher frequencies, this PCB maintains signal fidelity across broadband ranges—from UHF to sub-THz bands—thanks to its stable permittivity and minimal dielectric loss. Its design supports precision routing of RF traces, enabling accurate impedance control critical for differential amplifiers, filters, and power dividers. The board’s ability to maintain tight tolerances during manufacturing allows for the production of hybrid laminates combining PTFE with FR4, offering cost-effective solutions without compromising high-frequency performance. Whether used in standalone microwave modules or integrated into compact 5G base stations, these boards offer unmatched stability under temperature fluctuations, vibration, and humidity changes. Common Use Cases: - Radar and electronic warfare systems - Satellite communication terminals (C-band, Ku-band, Ka-band) - Millimeter-wave front-end modules for 5G/6G networks - Automotive collision avoidance sensors and adaptive cruise control - Aerospace avionics and navigation equipment - Test and measurement instruments requiring precise RF signal paths Users consistently praise the board’s repeatability in high-speed digital and analog circuits, especially when deployed in high-density multilayer configurations. Engineers report fewer EMI issues and improved return loss compared to standard substrates, particularly in narrowband and wideband amplifier stages. The consistent quality of the PTFE laminate also reduces fabrication defects like delamination or via voiding, leading to higher yield rates in mass production. Frequently Asked Questions: What makes this PCB suitable for microwave applications? The PTFE-based dielectric offers extremely low dielectric loss and stable Dk values across temperature and frequency, essential for maintaining signal integrity above 1 GHz. How does it compare to FR4 at high frequencies? FR4 exhibits rising losses and inconsistent Dk beyond 1 GHz, while this board maintains uniform electrical characteristics, making it preferred for RF and microwave PCBs. Can it support mixed-signal designs? Yes—it accommodates both high-speed digital and sensitive analog sections due to excellent isolation between layers and low crosstalk. Is it compatible with standard PCB manufacturing processes? It can be processed using conventional techniques but requires specialized lamination parameters and drilling protocols to preserve dimensional accuracy and surface smoothness. This high-frequency PCB represents a robust solution for engineers pushing the boundaries of wireless technology, where signal purity, thermal management, and mechanical durability are non-negotiable.
