Taconic High-Frequency

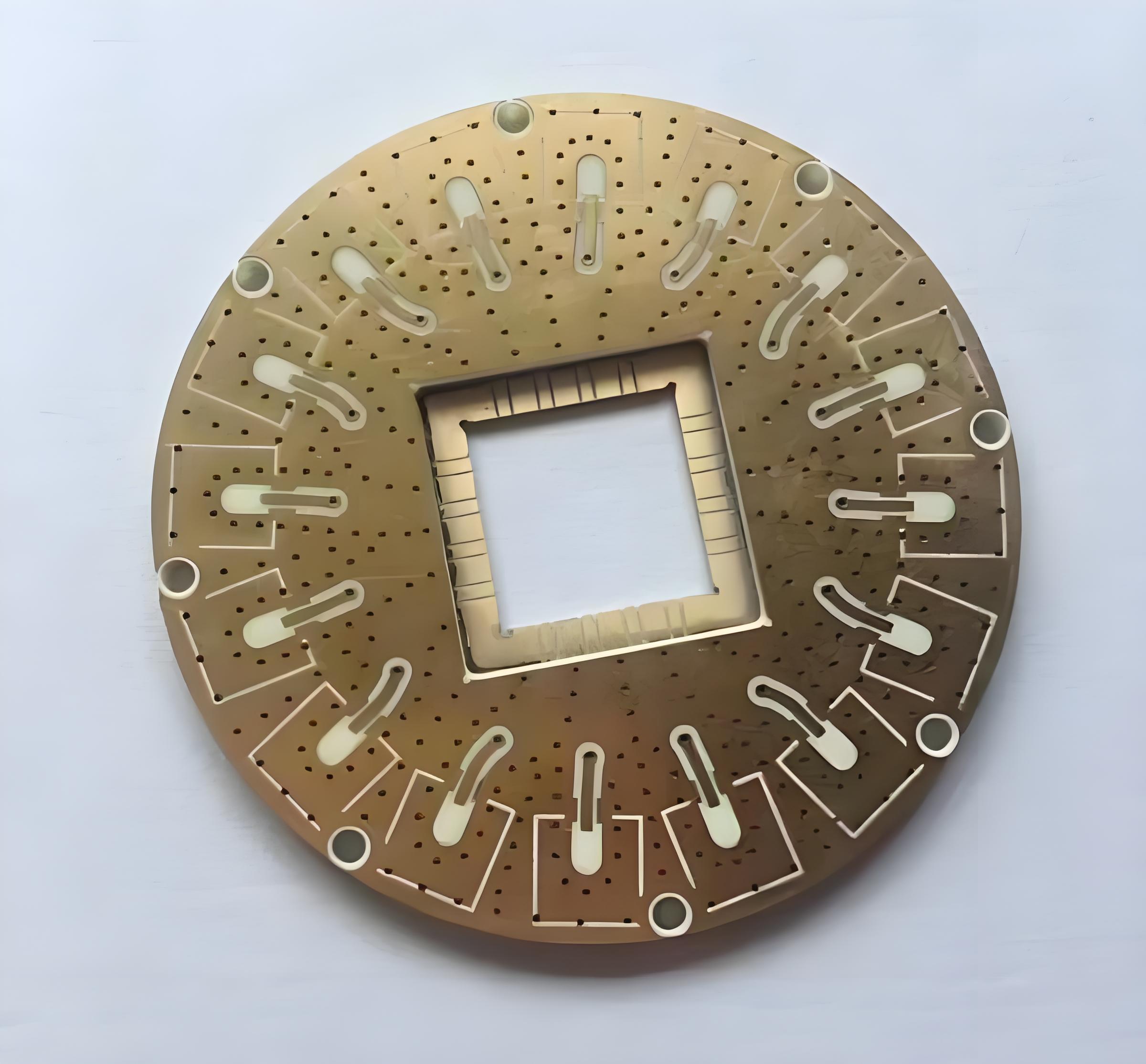

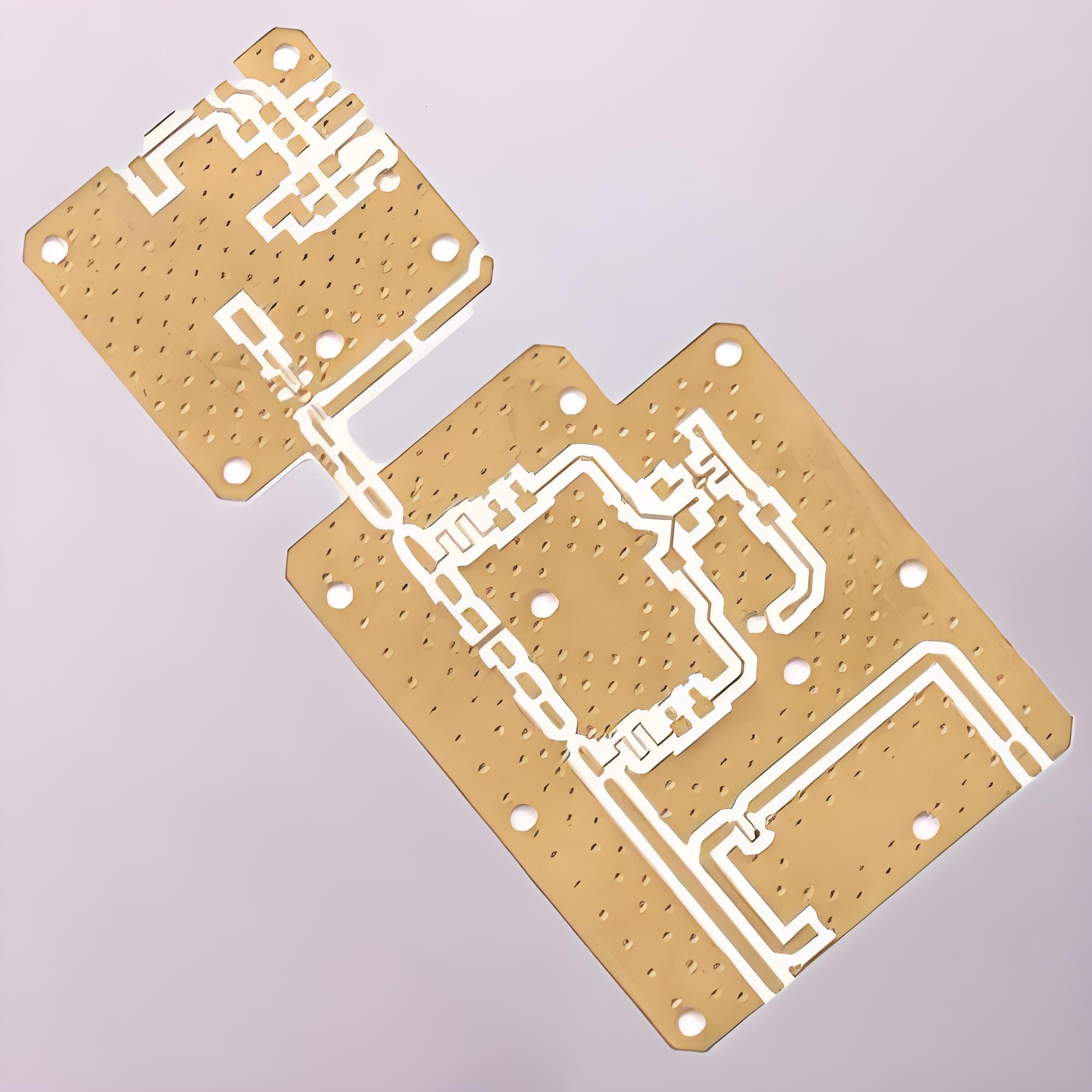

PCB: Premium RF Circuit Board for Advanced Electronics Applications Taconic high-frequency printed circuit boards represent a cutting-edge solution for demanding radio frequency (RF) and microwave designs. Engineered with ceramic-filled polytetrafluoroethylene (PTFE) and glass-reinforced laminates, these boards deliver exceptional electrical performance, thermal stability, and mechanical reliability—making them ideal for aerospace, telecommunications, radar systems, and high-speed digital applications. Unlike conventional FR-4 materials, Taconic substrates maintain consistent dielectric properties across a wide temperature range, ensuring signal integrity in critical environments. Key Features: - Low dielectric loss and minimal signal attenuation for superior RF performance - Excellent dimensional stability under thermal stress - Wide dielectric constant range (typically 2.2–10.2) to suit diverse design requirements - Low moisture absorption for enhanced durability in humid conditions - Compatible with standard PCB manufacturing processes including milling, plating, and drilling - Tin immersion surface finish for reliable solderability and corrosion resistance Detailed Description: The Taconic PCB is not merely a substrate—it’s a performance-driven material system tailored for next-generation electronics. Its unique composition of thermoplastic prepregs and reinforced PTFE provides low dissipation factor, high insulation resistance, and consistent electrical behavior even at frequencies above 10 GHz. With a copper thickness of 1 oz and board thickness of 0.8 mm, this 2-layer laminate supports fine-line routing (minimum line width: 0.7 mm, minimum spacing: 0.25 mm), enabling compact yet highly efficient layouts. The material’s low electrical signal loss makes it especially suitable for phased array antennas, satellite communication modules, and millimeter-wave circuits where precision matters most. Moreover, its compatibility with hybrid manufacturing techniques allows integration with other materials such as FR-4 or Rogers laminates in multi-layer stack-ups, offering flexibility without compromising performance. Ideal Use Cases: This high-frequency PCB excels in applications requiring stable impedance control, minimal insertion loss, and long-term reliability. Common industries leveraging Taconic boards include defense electronics, 5G infrastructure, medical imaging devices, automotive radar sensors, and scientific instrumentation. Whether designing a high-gain antenna array or a low-noise amplifier, engineers rely on Taconic's proven track record in delivering consistent results across complex PCB architectures. Customer Feedback: Users consistently praise the board’s ability to reduce signal degradation compared to traditional materials. One engineer noted, “After switching from standard FR-4 to Taconic RF35, our signal-to-noise ratio improved significantly—especially in outdoor deployments.” Another highlighted the ease of fabrication: “The drill parameters were straightforward once we adjusted feed rates based on the material data sheet—no unexpected warping or delamination.” Frequently Asked Questions: What sets Taconic PCB apart from Isola PCB? While both brands offer high-performance laminates, Taconic uses ceramic-filled PTFE and glass-reinforced formulations that provide better thermal expansion matching and lower dielectric loss at higher frequencies. Isola boards often use epoxy-based resins which may be more cost-effective but less stable in extreme RF conditions. Is Taconic suitable for multi-layer boards? Yes, Taconic materials can be integrated into multi-layer stacks using standard lamination techniques. However, careful attention must be paid to layer alignment, pressure profiles, and curing cycles when combining with other materials like FR-4 or BT resin. How does Taconic perform in humid environments? Due to its low moisture absorption rate, Taconic maintains stable dielectric properties even in high-humidity settings—an advantage over many conventional laminates that degrade over time due to water ingress. Can I machine Taconic PCBs using standard equipment? Absolutely. Taconic boards are compatible with standard CNC drilling, routing, and plating processes. Just ensure proper tooling selection and parameter tuning—especially during hole preparation—to avoid microcracks or poor adhesion.
