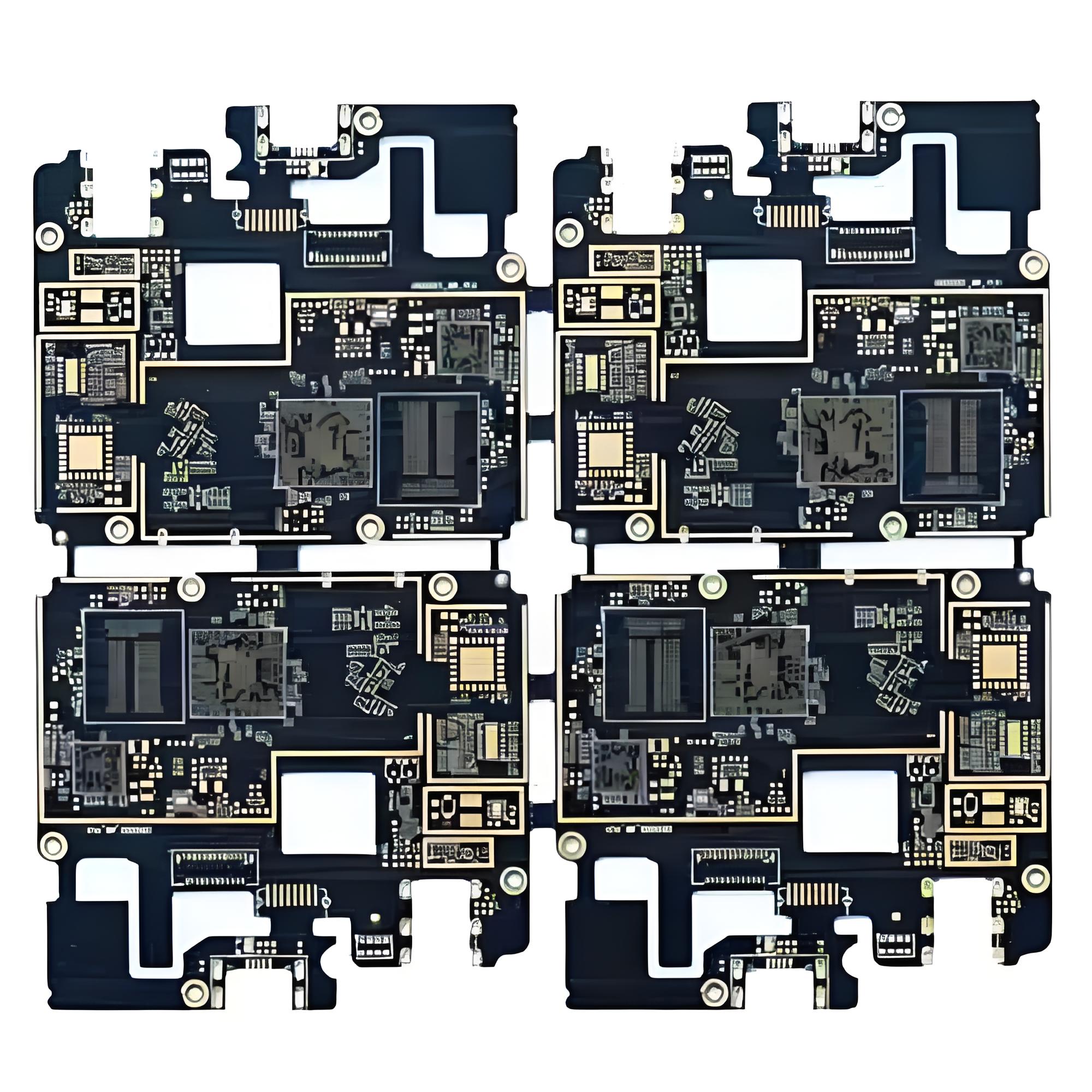

High Frequency Embedded Copper
PCB for Advanced RF Communication Systems This high-frequency printed circuit board (PCB) is engineered for optimal performance in demanding applications such as 5G infrastructure, radar systems, and high-power amplifiers. Designed with a unique embedded copper structure, it combines superior thermal management with stable electrical characteristics, making it ideal for modern communication equipment where signal integrity and heat dissipation are critical. Key Features: - Dielectric constant of 3.38 ensures minimal signal loss at high frequencies - Dual-layer material stack-up: Rogers RO4003C + 4450F for enhanced stability - Four-layer construction (4L PCB) with precise copper thickness distribution (1/0.5/0.5/1 oz) - Finished board thickness of 1.6mm provides mechanical robustness - Immersion gold surface finish for reliable solderability and corrosion resistance - Specialized manufacturing process for embedded copper integration - Optimized dielectric layer thickness of 0.508mm for controlled impedance Detailed Description: The High Frequency Embedded Copper PCB integrates a precision-machined copper block within the laminate structure to improve thermal conductivity—especially crucial in power amplifier modules and RF front-end circuits. Unlike traditional PCBs that rely solely on copper traces for heat dissipation, this design embeds a solid copper plate directly into the core, enabling efficient heat transfer away from sensitive
Components. The embedded copper layer not only acts as a heatsink but also serves as a ground plane, reducing electromagnetic interference (EMI) and enhancing signal purity. To ensure structural integrity, the copper block is slightly undersized relative to its cavity—a deliberate gap that allows adhesive film to flow during lamination, creating strong mechanical bonding between the copper and the substrate. This technique prevents delamination under thermal cycling or mechanical stress. Additionally, the use of high-grade materials like RO4003C and 4450F ensures consistent dielectric properties across temperature ranges, which is essential for maintaining signal consistency in high-speed digital and analog circuits. Applications: This PCB is specifically tailored for microwave and millimeter-wave communication devices including base stations, satellite transceivers, military radar systems, and test instrumentation. Its hybrid approach—using expensive high-frequency laminates only where needed while embedding copper for cost-effective thermal control—makes it a preferred choice for OEMs seeking both performance and efficiency. User Feedback: Engineers working in wireless communications report improved reliability in high-power RF modules using this PCB. One user noted, “The embedded copper significantly reduced junction temperature in our PA module, allowing us to push higher output levels without thermal shutdown.” Another praised the consistent impedance control across multiple production runs, which simplified matching network design. Common Questions: What makes embedded copper PCBs better than standard FR4 boards? Embedded copper enhances thermal dissipation, reduces EMI, and improves signal integrity—key advantages in RF and high-current applications. Can this PCB be used in automotive radar systems? Yes, due to its excellent thermal performance and low dielectric loss, it’s well-suited for automotive ADAS and radar sensors operating at 77GHz and above. How does the gap between copper block and groove affect reliability? A carefully controlled gap ensures proper adhesion through resin filling, preventing movement during pressing and eliminating voids that could lead to failure over time. This product meets global standards for electronic performance and durability, offering engineers a powerful solution for next-generation communication hardware.
